Name: Polysulfone IP68 1MHz 1300PF Flow Meter Ultrasonic Sensor
Brand: Yujie
Price: 1 USD

Brand Name : Yujie

Model Number : HJ-RL1000-2010

Certification : ISO9001

Place of Origin : Jiangsu, China

MOQ : 100 Piece/Pieces

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 3~30 working days

Packaging Details : Carton #: 22x22x18cm

Theory : Ultrasonic Sensor

Usage : Flow tranducer

Frequency : 1Mhz

Material : PSU

Contact Now

1MHz PSU Housing Accurate Measurements For Flow Meter with High Sensitivity

Specifications:

Description	Parameter	Description	Parameter
Product type	Liquid measurement	Impedance Z(Ω)-in water	100Ω±30%
Model	HJ-RL1000-2010	Max operation voltage Pulse(duty-cycle 2%)	300V
Resonance frequency(kHz)	1.00MHz±3%	Operation temperature(℃)	4~+70℃
Bandwidth△f(in water)-6dB	±10%	Storage temperature(℃)	-30~+90℃
Amplitude	˂ 30μs	Protection/waterproof level	IP68

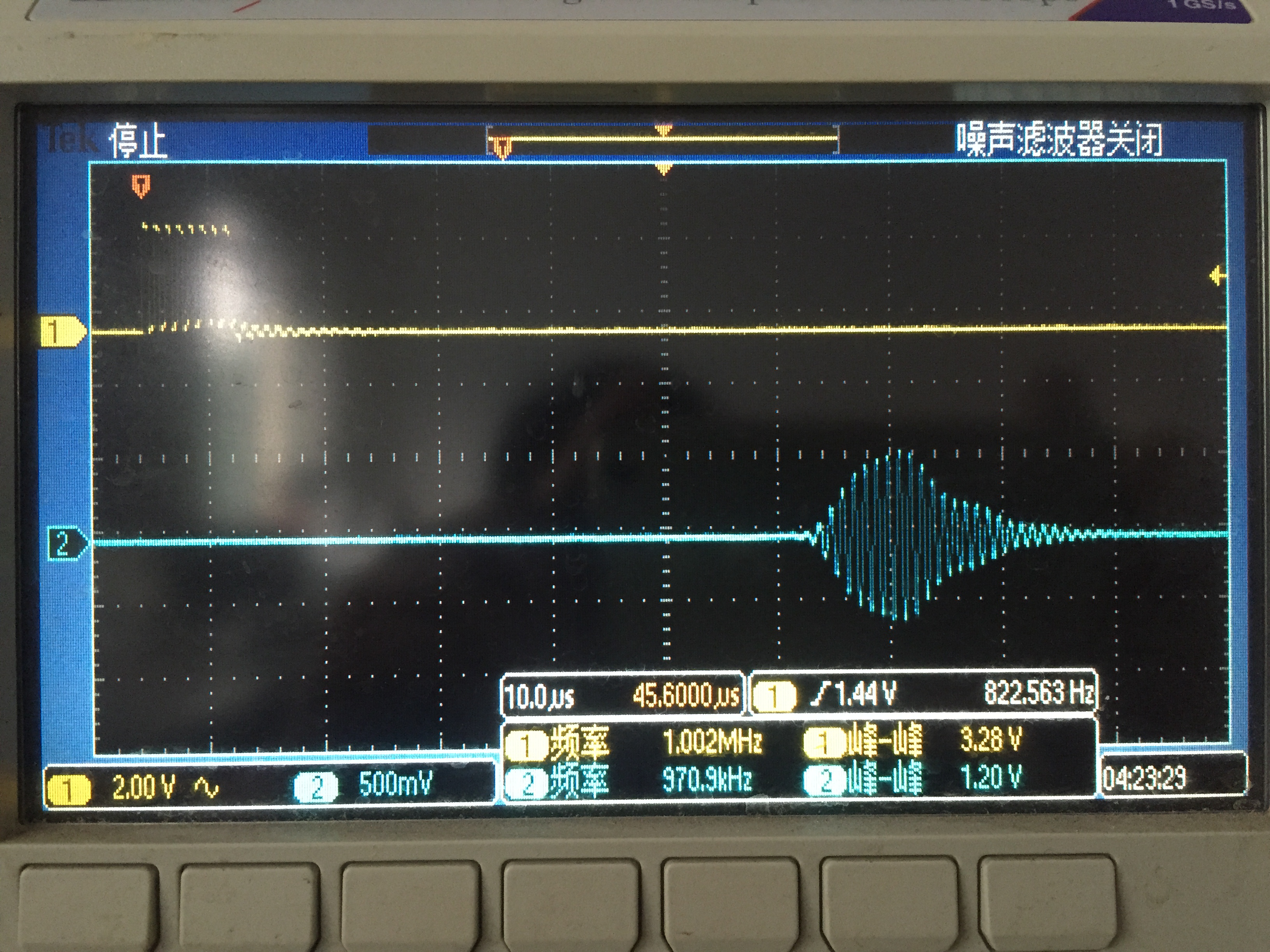

General sensitivity(V) One transmitter one receiver (0dB=3Vp-p 8pulses L=85mm)	>1.0V	Housing material	Polysulfone ( PSU)
Beam width°(-3dB)	6°	Cable size	Single core shielded cable 35CM
Static capacitance(pf)	1300PF±20%	Corrosion resistance	Resistance to weak acid weak alkali
		Weight (g)	14g/pc
Remark	The structure size of probe can be customized .

All specification taken typical at 25℃

Main Application:

●Water flowing Measurement ●Short range Measurement accurately for Liquid

Feature:

●Small size, easy installation ● Long lifespan

●High Sensitivity, small amplitude,high accurate measurement

Polysulfone IP68 1MHz 1300PF Flow Meter Ultrasonic Sensor
